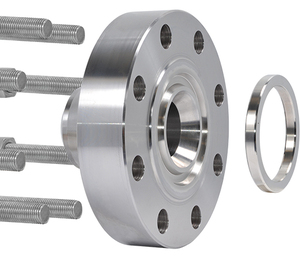

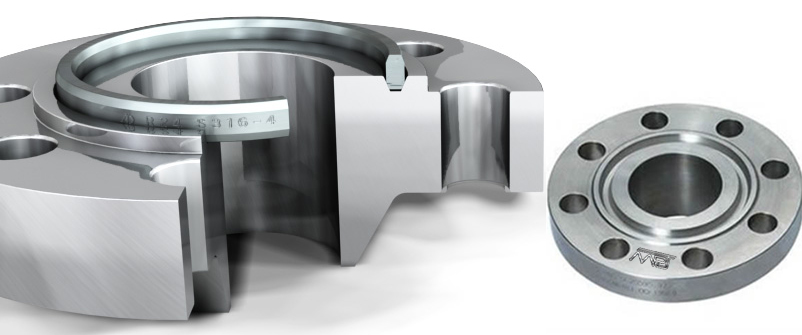

Supplier Of Class 300 Ring Type Joint Flange, Class 400 Ring Type joint Flange Facing Dimensions, ASME B16.47 RTJ Flange
Ring Type joint Flange Supplier, ANSI B16.5 RTJ Flange, MSS SP-44 Ring Type Joint Flanges, ASME B16.47 Series A and B RTJ Flange, DIN86029 PN10 Ring Type Joint Flange
ANSI/ASME B16.5 Ring Type joint Flange Specification
|
Dimensions |
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
|
Flange Size |
1/2″ (15 NB) to 48″ (1200NB) |
|
flange Class |
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
|
DIN |
DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
|
BS |
BS4504 , BS4504, BS1560, BS10 |
|
Coating/Surface Treatment |
Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
|
Flange Face Type |
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
|
Value Added Services |
CNC Machining, Customised Flanges |
ASME B16.5 RTJ Ring Type Joint Flange Material Specification
Stainless Steel RTJ Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Ring Type joint Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Ring Type joint Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70
Low Temperature Carbon Steel Raised Face Ring Type joint Flanges : ASTM A350, LF2, LF3
Alloy Steel Ring Type joint Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Ring Type joint Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Ring Type joint Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
TYPES OF FLANGES WE CAN SUPPLY MORE :

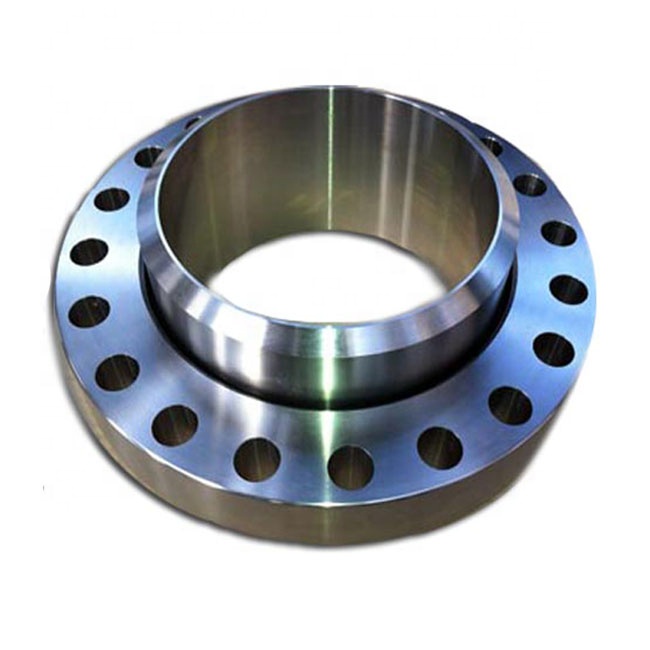

TYPES OF FLANGES
The most used flange types in Petro and chemical industry are:

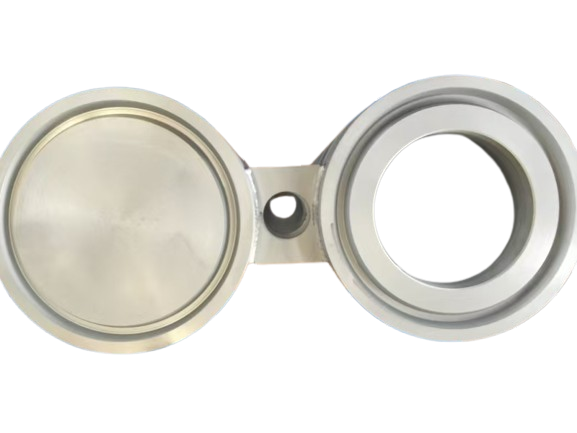

SPECIAL FLANGES
Except the most used standard flanges, there are still a number of special flanges such as:
