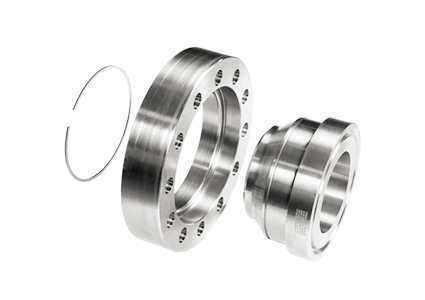

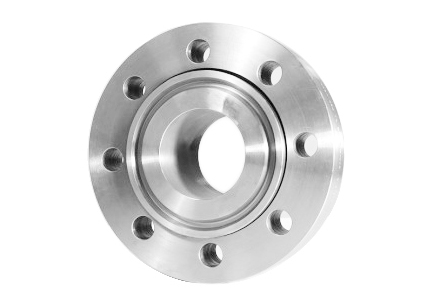

B16.5 Class1500 ASTM A694 F42 F65 F60 F70 RTJ Carbon Steel Swivel Flange

Products Inquiry
Click Refresh Verification Code

Product Information

A694 F42 F65 F60 F70 Carbon Steel Swivel Flange manufacturer ,A694 F42 F65 F60 F70 Carbon Steel Swivel Flange exporter & A694 F42 F65 F60 F70 Carbon Steel Swivel Flange supplier in China .
1) ANSI B16.5, ASME B16.47 FLANGE  Swivel Flange

Swivel Flange Size range: 1/2" to 80"  DN15 to DN2000

Swivel Flange Design: welding neck, slip on, blind, socket welding, threaded, lap-joint

Swivel Flange Pressure: 150#, 300#, 600#,900#,1500#, 2500#

Swivel Flange Wall thickness for welding neck flange: STD, SCH40, SCH80, SCH160. SCHXXS

Swivel Flange Material: carbon steel A105,A694 F42 F50 F60 F65 F70,  stainless steel  F304/304L, F316/316L F321,F51

Swivel Flange Coating: black paint, yellow transparent paint, cold and hot dip galvanize

Swivel Flange Package: seaworthy plywooden case, wooden pallet  ...

flanges we can supply as following :

FLANGE STANDARD

PRESSURE RATING

TYPE

FACING

MATERIAL

ANSI B16.5

CLASS 150 300 400 600 900 1500 2500 LBS

SO WN SW TH LJ BL LWN

RF FF RTJ

ASTM SA105/105N A350 LF2 CL1/CL2 A694 F45/52/65, s235jr C22.8;

A182 F304/304L A182 F316/316L A182 F317L A182 F310 F321 F347;

A182 F5 F9 F11 F51 F53 F55 F60 F304H F316H F317H, C276 INCONLE 600 625; and etc..

ANSI B16.47-A MSS

CLASS 150 300 400 600 900 LBS

WN BL

ANSI B16.47-B API

CLASS 75 150 300 400 600 900 LBS

ANSI/ASME B16.36

CLASS 300 400 600 900 1500 2500 LBS

ORIFICE

ANSI/ASME B16.48

CLASS 150 300 400 600 900 1500 2500 LBS

FIG.8 SPACER AND BLANK SPECTACLE

AWWA C207

CLASS B & D TABLE 2/3, CLASS E TABLE 4

SO PL BL

EN 1092-1

PN 2.5 6 10 16 25 40 63 100 160 250 320 400

PL LOO BL WN SO TH

BS 4504

PN 2.5 6 10 16 25 40

PL WN TH BL SO

DIN

PN 6 10 16 25 40

PL WN TH BL LOO SO

UNI

PN 6 10 16 25 40

PL WN TH BL LOO

SABS/SANS 1123

CLASS 600 1000 1600 2500 4000 KPA

WN PL TH SO BL

JIS B2220/KS

5K 10K 16K 20K 30K 40K

SOP/PL SOH/SO BL

GOST

PN 1 1.6 2.5 4 6.3 10

PL WN BL

AS

TABLE D E F H

PL SO BL


TYPES OF FLANGES

The most used flange types in Petro and chemical industry are:

  • Welding Neck Flange
  • Slip On Flange
  • Socket Weld Flange
  • Lap Joint Flange
  • Threaded Flange
  • Blind Flange
Most used flange types in Petro and chemical industry

SPECIAL FLANGES

Except the most used standard flanges, there are still a number of special flanges such as:

  • Orifice Flanges
  • Long Welding Neck Flanges
  • Weldoflange / Nipoflange
  • Expander Flange
  • Reducing Flange
Special flanges
