2) BS4504 FLANGE
Size range: DN15 to DN2000
Design: type01 plate flange, type02 loose flange, type05 blind flange, type11 welding necking
type12 slip on flange, type 13 threaded flange
Pressure: PN6, PN10, PN16, PN25, PN40, PN64, PN100
Material: carbon steel C22.8, S235, S235JR, P235GH, stainless steel: 304/304L, 316/316L
Coating: black paint, yellow transparent paint, cold and hot dip galvanize
Package: sea worthy plywooden case, wooden pallet
RELATED FLANGE INFO.
|
Size |
1/2"-72" |
|
|
Type |
Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice Flange, Swivel Flange, Spectacle Blind,Etc. |
|
|
Process Method |
Free forging, die-forging, casting, plate cutting & machining |
|
|
Standard |
ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA and GB |
|
|
Connection |
Butt weld & Socket weld & Thread |
|
|
Class |
ANSI 150LBS-2500LBS, |
|
|
DIN PN6-PN160 |
||
|
BS PN0.25-PN25 PN2.0-PN42.0 |
||
|
JIS 5K-30K |
||
|
Flange Face Types |
Raised Face (RF) ,Flat Face (FF) ,Ring-Type Joint (RJ) ,Ring Type Joint Gaskets, |
|
|
Materials |
Carbon Steel |
ASTM A105,ASTM A350 LF1, LF2, CL1/CL2, A234, S235JRG2, P245GH P250GH, P280GHM 16MN, 20MN ,20# ,etc. |
|
Low Temperature Carbon Steel: ASTM SA350 LF2 |
||
|
High Strength Steel: ASTM SA694 F42/46/52/56/60/65 |
||
|
Stainless Steel |
ASTM A182 F304/304L/316/316L |
|
|
Alloy Steel |
ASTM A182 F1/F5/F9/F11/F22/F91/Etc. |
|
|
Duplex stainless steel |
ASTM A182 F51/F53/F55/F60 |
|
|
Nicke alloys |
Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800 |
|
|
Cu-Ni |
90/10,70/30 |
|
|
Process |
Free forging, plate cutting. |
|
Coating |
Carbon steel and alloy steel: |

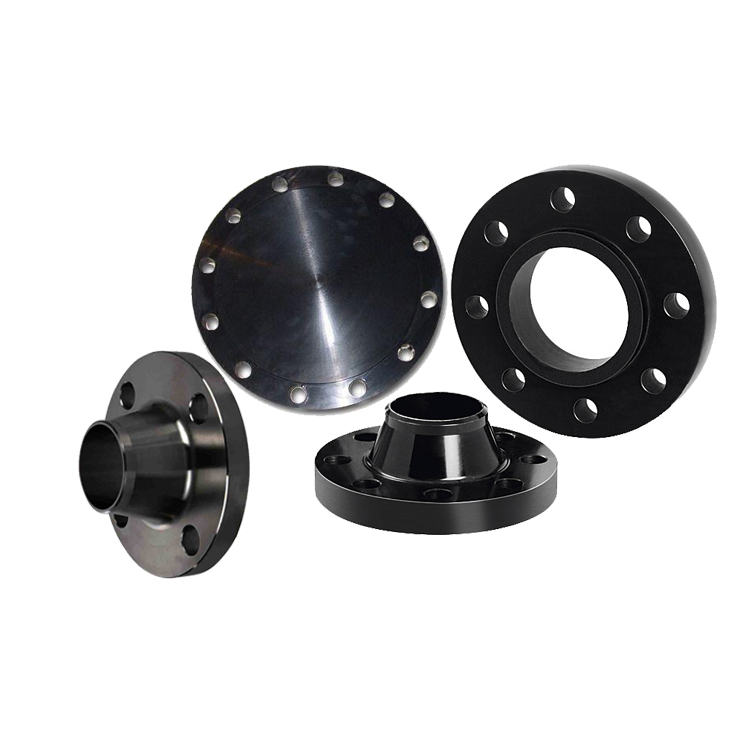

TYPES OF FLANGES
The most used flange types in Petro and chemical industry are:

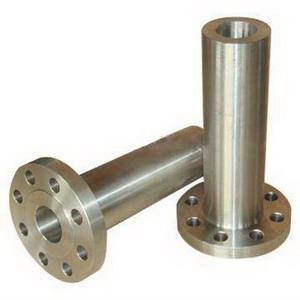

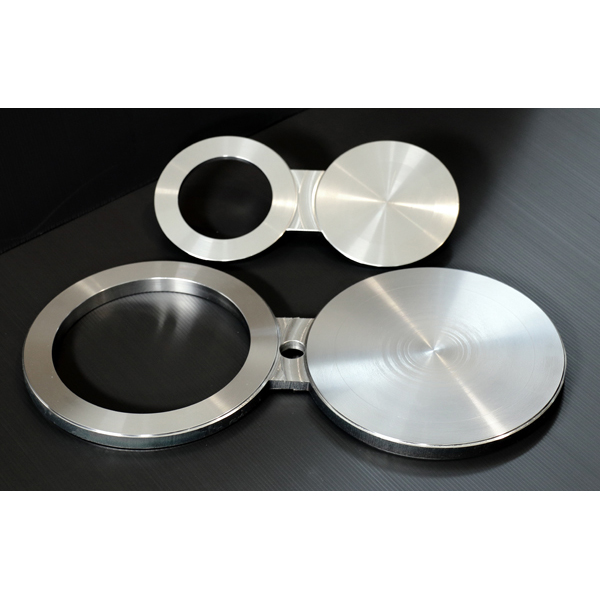

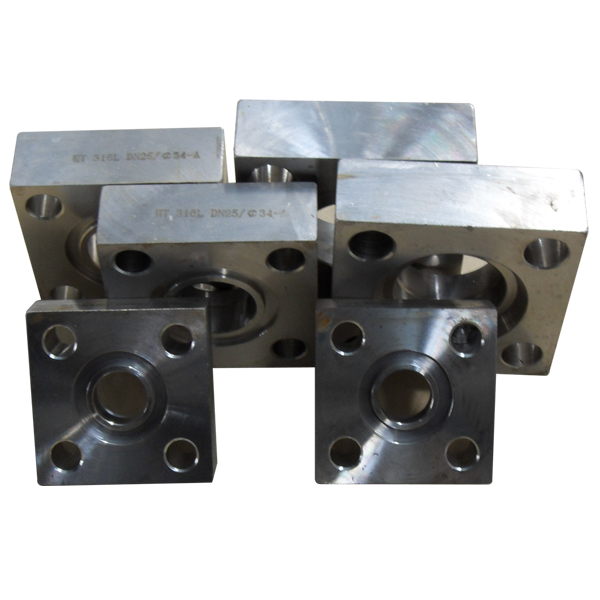

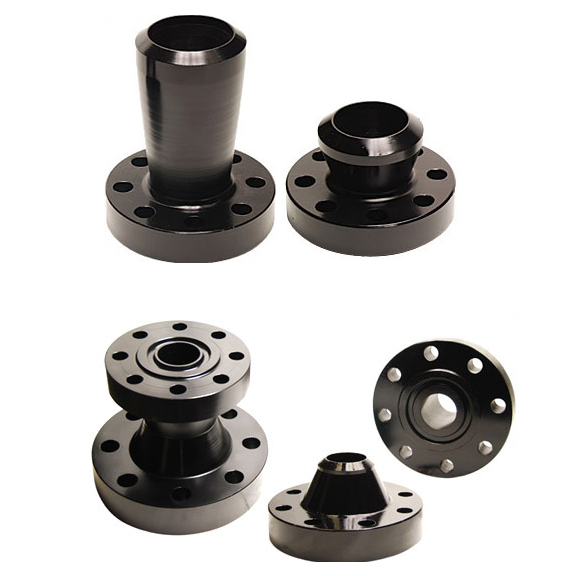

SPECIAL FLANGES
Except the most used standard flanges, there are still a number of special flanges such as:
